Boring Machine

We present our esteemed clients with wide spectrum of quality boring machines. Our range of Boring Machine caters to the requirements of various industries, such as engineering, automobile, etc. Further, these boring machine are manufactured using optimum raw material and are known for their sturdy design, high functionality & low maintenance. Moreover, our machines are offered in various technical specifications to meet the client’s specific requirements.

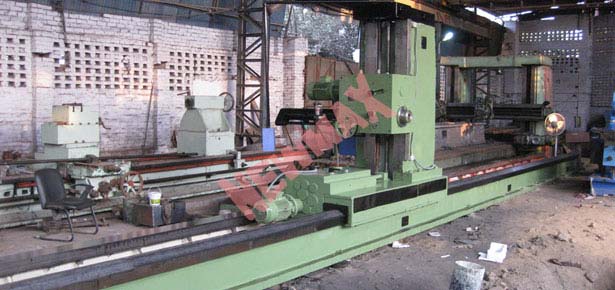

Horizontal Boring Machine

We are engaged in manufacturing and exporting of superior quality multifunctional horizontal boring machines, which are used in various industries for wide range of applications. Our skilled professional imply their knowledge and high expertise in manufacturing of these widely acknowledged boring machines. Our machines have high durability and requires low maintenance. Further, the Rigid & Massive construction of the machine ensures excellent performance while bearing all the working stresses. Our machines can be custom made as per clients specifications. Moreover, Our clients can avail these machines at highly competitive prices.

Features:

The verniers Casting is done with the mixture of 25% Steel and Ferro Chrome. To acquire proper Brinell hardness, it is also seasoned for at least six months. The machine is manufactured to Grade-1 Limits of accuracy
Heavily ribbed box type bed and sturdy box type columns to withstand the heavy cutting force even at elevated heights
High accuracy of machining due to accurately grounded reliable ways of bed and pillars and fine positioning by Dial gauges and vernier Digital Readout system
Longitudinal and Cross Table Traverses, Vertical Travel of Head Stock and Boring Supports are provided with rapid movements as well as feeds
Provision of inching spindle speeds and feeds of gearbox
All Gears are precision cut on imported Mother Machinery to ensure smooth and silent running
Precise synchronized vertical travel of Head Stock and Boring stay Support
The Machine is manufactured according to DR. SCHLESINGER’S ACCEPTANCE TEST chart
Special Arrangement: To set Rotary Table perfectly at right angle
Safety Clutches: Facing Mechanism, Sliding Mechanism of Cross Slide, Rotary Movement of work table and working Spindle’s Longitudinal Movement
Apart from above safety measures, suitable shear pins are also provided for the total safety of machine
Adjustable stoppers to trip longitudinal and vertical feeds at desire points are also provided
Hand operated knurled socket attached to head Stock Drive Motor and Operated wheel attached to feed gear Box
Motor for the safe engagement of speeds and feeds respectively
Mechanical clamping of all axes
Manual Boring head height setting adjustment with a lever attached to Feed Gear Box
Conveniently arranged and simple Control Panel system ensures easy operation

Technical Specifications
Model No	NHB80	NHB100	NHB110	NHB125	NHB130	NHB 150
Alloy Steel Work Spindle Hardened & Ground-Diameter	80	100	110	125	130	150
Morse Taper Number	5	6	6	6	6	6
Max. Longitudinal Movements of Working Spindle	510	510	510	600	600	650
Number of Spindle Speeds	9	9	9	9	9	9
Range of Spindle Speeds – R.P.M.	15 to 300	15 to 250	15 to 250	15 to 250	15 to 250	12 to 250
Longitudinal Work Spindle Feeds Nos.	9	9	9	9	9	9
Max. Height of the Spindle Axis from Table Surface	925	1000	1100	1200	1300	1500
Min. Height of the Spindle Axis from Table Surface	25	30	30	30	30	30
Dimensions of the Rotary Table	900*1105	1030*1375	1100*1450	1220*1675	1320*1775	1500*2000
Longitudinal table Traverse	1625	1775	1925	2050	2800	2950
Long. Table Traverse Feeds (Including one Rapid)	10	10	10	10	10	10
Transversal Table Travel Feeds (Including one Rapid)	10	10	10	10	10	10
Vertical Head Stock Travel Feeds (Including one Rapid)	4	4	4	10	10	10
Rotary Table Automatic Feeds (Including one Rapid)	10	10	10	10	10	10
Max. Cross Movement of the Table	1000	1100	1300	1500	2000	2000
Max. Distance between Stay Bearing & Facing Head	2400	2690	2800	2950	3600	3950
Facing Head Diameter	505	555	600	650	650	700
Weight Approx. in Kgs.	8500	9500	11000	16000	17000	19000

Standard Accessories
These come as a package with the product and are helpful in the entire functioning of the machine for various purposes. They can also be customized as per the requirements of the customer.

Automatic Facing Head
Boring Bar
2 no Lubrication Pumps
6 no of Limit Switches
Automatic Rapid Travel in Slide of Facing Head
Electricals Required for Boring Machine

Optional Accessories
These accessories are optional with the product and can be provided based on the customer’s requirement.

Threading Attachment
Milling Attachment
Taper Turning Attachment

:: Send Enquiry ::

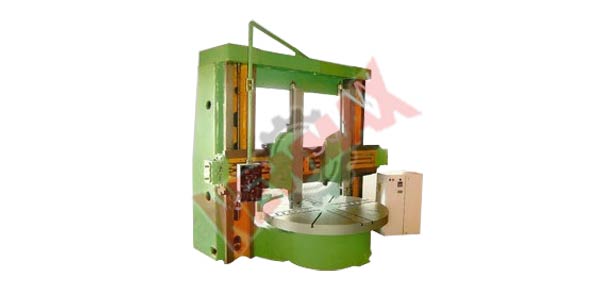

Vertical Boring Machine

We bring forth wide range of vertical boring machines, which is meant for general purpose application for machining a variety of components in various type of industry. Moreover,this machine provide the rugged metal removal capacity and advanced design features for high precision machining. Our machines possess great tensile strength, durability and longer service life. We custom design and configure these machine as per client specifications. We offer our range of vertical boring machines at highly competitive price.

Technical Data of Vertical Turning Cum Boring Machine
S. No.	Model No.	VT-1	VT-1.5	VT-2	VT-2.5	VT-3	VT-4	VT-5
1	Max. Turning Dia	1100	1700	2200	2700	3200	4200	5200
2	Table Dia	1000	1500	2000	2500	3000	4000	4500
3	Max. Working Height	600	1500	1500	1500	1600	1600	1600
4	Max. Vertical Travel of Ram Head	500	800	800	800	900	900	900
5	Swivel Angle of Ram Head	±30	±30	±30	±30	±30	±30	±30
6	Horizontal Travel of Side Ram Head (Optional)	250	375	500	625	750	900	1000
7	Vertical Travel of Side Ram Head (Optional)	400	1300	1300	1300	1400	1400	1400
8	No. of Table Speed	STEPLESS INFINITELY VARIABLE SPEEDS WITH AC VARIABLE FREQUENCY DRIVE
9	Range of Table Speed RPM	6-60	4-40	3-30	2-20	1.5-15	1-10	0.7-7
10	No. of Feeds Vertical / Horizontal	6-60	6	6	6	6	6	6
11	Range of Feed Vert/Hor (mm/min)	3-12	2-8	1.5-6	0.5-5	0.5-5	0.5-5	0.5-5
12	Rapid Traverse of Head (mm/min)	300	300	300	250	250	250	250
13	Main Motor (H.P.)	7.5	15	20	25	30	40	50
14	Ram Feed Gear Box Motor (H.P.)	3	3	5	5	7.5	7.5	7.5
15	Auto Lifting of Cross Rail Motor (HP)	3	3	5	5	5	5	5

* Specification of bigger sizes can supplied on request.
Note: Since the results of most modern research and development are being constantly applied to our machines, illustrations, construction details and technical data given here are not binding upon us.

:: Send Enquiry ::
