Lathe Machine
We offer different types of Lathe Machine such as
V-Belt Lathe Machine, Extra Heavy Duty Lathe Machine and All Geared Lathe
Machine. These lathe machines are used to create an object which has
symmetry about an axis of rotation. The lathe machine offered by us comes
with effective post sales service that assists clients in maintenance and
trouble shooting. Designed flawlessly and built to tight tolerances our
Lathe Machines are compact in size and offer value for money. The machines
feature simplicity and robustness.
V Belt Lathe Machine
V Belt Lathe Machine is deep, wide and internally
reinforced by a new and latest system of webs which enables it to take up
heavy thrust of tools without vibration. It is made of close grained cast
iron, mixed with salts to attain requisite hardness and to prevent any
possibility of distortion horizontally. It is V-Type and accurately hand
scrapped. A removable gap piece is fixed with 2 location pins for perfect
alignment. The bed consists of three V's.
Features:
Head Stock
- Flat seat is perfectly matched by precision hand scraping
- Spindle is made from high carbon steel which rotates on five no.
of bearing for smooth running
- Perfect balancing and thrust of the spindle is taken by heavy
duty thrust bearings
- Also made by fitting Taper Roller Bearings in the head stock
Carriage
- Robust design and provided with long carefully scraped
sliding surfaces
- Swiveling compound slide is accurately indexed for taper
turning
- A four-way steel turret tool post
The Apron
- Double wall design with automatic interlock
- Prevent simultaneous engagement of feed shaft and lead screw
in Lathe machine
- Gears and bearings including worm have suitable oiling
arrangement
|
 |
Tail Stock
- Strong & rigid construction
- Provided with set-over motion for taper turning
- Quill is fairly thick and properly graduated
Lead-Screw
- Inch calibrated
- Made of high resistant alloy steel
- Large diameter
- Threads have very high degree of precision in Lathe machine
|
| Technical
Specifications |
| Model No |
NL 6mm |
NL 8mm |
NL 10mm |
NL 12Amm |
NL 12Bmm |
NL 12Cmm |
| Length of Bed |
6ft/1828mm |
8ft/2438mm |
10ft/3048mm |
12ft/3657mm |
12ft/3657mm |
12ft/3657mm |
| Width of Bed |
14inch/350mm |
16inch/400mm |
18inch/450mm |
20inch/500mm |
22inch/550mm |
24inch/600mm |
| Height of Center |
12inch/300mm |
14inch/350mm |
16inch/400mm |
18inch/450mm |
20inch/50mm |
22inch/550mm |
| Swing over Slide |
17inch/430mm |
21inch/533mm |
25inch/635mm |
29inch/736mm |
31inch/787mm |
34inch/863mm |
| Swing in Gap |
36inch/914mm |
40inch/1016mm |
44inch/1117mm |
54inc/1370mm |
56inch/1422mm |
58inch/1473mm |
| Admit Between Centers |
33inch/838mm |
54inch/1371mm |
78inch/1980mm |
95inch/2413mm |
95inc/2413mm |
93inch/2363mm |
| Spindle Hollow |
2-1/8/53mm |
2-5/8/63mm |
3-5/8/88mm |
4-1/8/103mm |
4-1/8/103mm |
4-1/8/103mm |
| Type of Bed |
Pedestals |
Pedestals |
Pedestals |
Planner |
Planner |
Planner |
| HP. Required |
2*960 |
2*960 |
3*960 |
3*960 |
3*960 |
5*960 |
| T.P.I. of Lead Screw |
4 |
2 |
2 |
2 |
2 |
2 |
Standard Accessories
- Steady Rest
- Follow Rest
- Motor Plate
- 22 No. of Change Gears
|
 |
Optional Accessories
- Electricals Motor
- Dog Chuck
|
|
 |

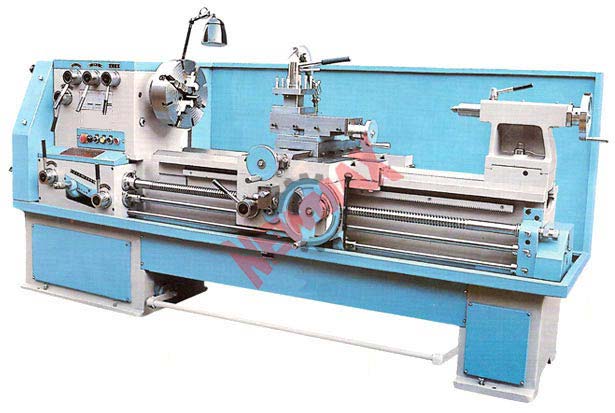

All Geared Lathe Machine
We manufacture and supply a broad range of All Geared
Lathe Machines manufactured using high quality raw material. We offer them
in various technical specifications these machines have recieved a lot of
appreciation for their excellent functionality and efficiency. Ensuring
their durability we provide them at most reasonable prices and render our
clients within the specific time frame.
| Technical
Specifications |
| Bed Length |
6 ½ ft |
8 ½ ft |
10 ½ ft |
12ft |
14ft |
| Width of bed |
375mm |
375mm |
450mm |
500mm |
550mm |
| Height of center |
300mm |
300mm |
400mm |
450mm |
500mm |
| Swing over bed |
600mm |
600mm |
800mm |
900mm |
1000mm |
| Swing over cross slide |
325mm |
325mm |
530mm |
600mm |
630mm |
| Swing in gap |
865mm |
865mm |
1200mm |
1300mm |
1400mm |
| Admit between centers |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
| Nos of spindle speeds |
8 |
8 |
9 |
9 |
8 |
| RPM Range |
30-720 |
30-720 |
30-720 |
15-450 |
15-450 |
| Spindle Hollow |
65mm |
65mm |
90mm |
103mm |
103mm |
| Metric Threads |
01/14/10 |
01/14/10 |
01/14/10 |
01/14/10 |
01/14/10 |
| With Worth Threads TPI |
02/01/30 |
02/01/30 |
02/01/30 |
02/01/30 |
02/01/30 |
| No of Feeds |
30 |
30 |
30 |
30 |
30 |
| Electric motor Hp/Rpm |
3*1440 |
3*1440 |
5*1440 |
5*1440 |
7.5*1440 |
Standard Accessories
- Steady Rest
- Follow Rest
- Motor Plate
- 22 No. of Change Gears
|
 |
Optional Accessories
- Electricals Motor
- Dog Chuck
|
|
 |
Extra Heavy Duty Lathe Machine
We offer a highly efficient range of Extra Heavy Duty
Lathe Machines to our clients. These heavy duty Lathe machines are offered
in various models that vary in their technical specifications such as length
of bed, width of bed, height of center, lead screw diameter and type of bed.
They are manufactured using high grade durable material which are long
lasting and provide a long service life. Our machines are acknowledged for
their optimum performance, low maintenance and long working life.
| Technical
Specifications |
| Model |
NEL 16mm |
NEL 18mm |
NEL 20mm |
NEL 24mm |
NEL 26mm |
NEL 30mm |
NEL 36mm |
NEL 40mm |
NEL 48mm |
NEL 60mm |
| Length of Bed |
4900 |
5500 |
6100 |
7300 |
7900 |
9150 |
10970 |
12200 |
14600 |
18300 |
| Width of Bed |
650 |
700 |
750 |
800 |
900 |
1000 |
1050 |
1150 |
1250 |
1500 |
| Height of Center |
600 |
650 |
700 |
750 |
850 |
950 |
1000 |
1100 |
1150 |
1350 |
| Distance Between Center |
2850 |
3450 |
4050 |
5150 |
5750 |
6800 |
8500 |
9600 |
11700 |
15000 |
| Spindle Hollow |
103 |
103 |
103 |
103 |
103 |
103 |
127 |
150 |
150 |
150 |
| Swing over Saddle (Dia) |
950 |
1050 |
1100 |
1150 |
1400 |
1600 |
1650 |
1850 |
1950 |
2350 |
| Swing Over Bed (Dia) |
1200 |
1300 |
1400 |
1500 |
1700 |
1900 |
2000 |
2200 |
2300 |
2700 |
| Swing Over Gap (Dia) |
1700 |
1800 |
1900 |
2000 |
2200 |
2400 |
2500 |
2700 |
2800 |
3250 |
| No. of Spindle Speeds |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
| Lead Screw Dia |
60 |
60 |
60 |
60 |
60 |
75 |
80 |
85 |
85 |
85 |
| Lead Screw Pitch T.P.I. |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| H.P. Recommended |
7.5 |
10 |
10 |
15 |
20 |
20 |
25 |
30 |
30 |
20 |
Standard Accessories
- Steady Rest
- Follow Rest
- Motor Plate
- 22 No. of Change Gears
|
 |
Optional Accessories
- Dog Chuck
- Electrical
- Revolving Center
- Rapid Slide Gear Box
- Roller Guide
|
|
 |

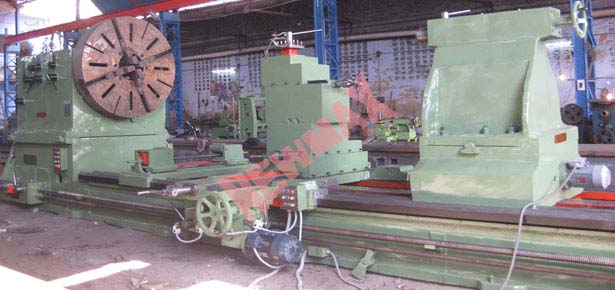

Heavy Duty All Geared Lathe Machine
We have a strong state-of-the-art infrastructure
which enables us to offer a wide range of All Geared Lathe Machines to our
clients. They are applied in various industries and are known for their
sturdy construction, high performance and noiseless operation. They are
designed keeping in view the industry standards and specifications laid down
by the Government. We manufacture this entire range of All Geared Lathe
Machines using high grade materials that ensure its long service life and
durability.
Our range is offered in the following technical specifications to our
clients:
| Technical
Specifications |
| Model |
NGL 16mm |
NGL 18mm |
NGL 20mm |
NGL 24mm |
NGL 26mm |
NGL 30mm |
NGL 36mm |
NGL 40mm |
NGL 48mm |
NGL 60mm |
| Length of Bed |
4900 |
5500 |
6100 |
7300 |
7900 |
9150 |
10970 |
12200 |
14600 |
18300 |
| Width of Bed |
650 |
700 |
750 |
800 |
900 |
1000 |
1050 |
1150 |
1250 |
1500 |
| Height of Center |
600 |
650 |
700 |
750 |
850 |
950 |
1000 |
1100 |
1150 |
1350 |
| Distance Between Center |
2850 |
3450 |
4050 |
5150 |
5750 |
6800 |
8500 |
9600 |
11700 |
15000 |
| Spindle Hollow |
103 |
103 |
103 |
103 |
103 |
103 |
105 |
105 |
105 |
105 |
| Swing over Saddle (Dia) |
950 |
1050 |
1100 |
1150 |
1400 |
1600 |
1650 |
1850 |
1950 |
2350 |
| Swing Over Bed (Dia) |
1200 |
1300 |
1400 |
1500 |
1700 |
1900 |
2000 |
2200 |
2300 |
2700 |
| Swing Over Gap (Dia) |
1700 |
1800 |
1900 |
2000 |
2200 |
2400 |
2500 |
2700 |
2800 |
3250 |
| No. of Spindle Speeds |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
| RPM Range |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
3-85 |
| Lead Screw Dia |
60 |
60 |
60 |
60 |
60 |
75 |
80 |
85 |
85 |
85 |
| Lead Screw Pitch T.P.I. |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| H.P. Recommended |
7.5 |
10 |
10 |
15 |
20 |
20 |
25 |
30 |
30 |
20 |
Standard Accessories
- Steady Rest
- Follow Rest
- Motor Plate
- 22 No. of Change Gears
|
 |
Optional Accessories
- Dog Chuck
- Electrical
- Revolving Center
- Rapid Slide Gear Box
- Roller Guide
|
|
 |
