PRODUCT RANGE
|
 |
 |
Plano Miller / Planner Miller
We are premium manufacturers and suppliers of Planner
Machines which are mainly used for the purpose of creating flat and angular
surfaces. Our Planner Machines are ideal for horizontal and vertical milling
functions and are highly durable. They are applied in various industries and
are known for their sturdy construction, high performance and noiseless
operation. They are made to handle large range of parts irrespective of its
size and weight. We offer a complete range of Two Side Planner Machines or
else they can be designed as per the requirements of the customer.
Two Side Planner Machine
We are currently manufacturing and exporting a highly
efficient range of Two Side Planner Machines. These have components such as
bed, table, and bearings, cross rail, tool posts, uprights and drive. They
are manufactured using high grade material which is a specimen of guarantee
in their own respects. Our range of Two Side Planner Machine is offered in
various technical specifications to our clients.
Features:
The Bed
- Deep box section type
- Tied together at frequent intervals by double walled bridge
pieces extending to the bottom of the bed
The Uprights
- The uprights of planner machine are of rigid box section type
- Keyed firmly, bolted on to the bed and are capable of
absorbing the heaviest shocks without vibration
- Extra pins are provided to re-fit the machine accurately
after it has been dismantled
The Table
- Box section type is streamlined with hand scraped 'V'
- Can bear heavy load
- Heavily ribbed
- Rack provided in it
The Bearings
- Main bearings are cast solid with the bed
- Gear teeth hobbing machine cut except two gears which are
helical
- Gun metal bearings have been provided for all shafts and
loose pulleys
- Taper roller bearings can also be provided instead of gun
metal bushes
|
 |
The Cross Rail
- Box section type with large surface
- Suitable for both hand and mechanical drive
The Drive
- The planner machine is arranged for direct individual as well
as two belt drive
Tool Posts
- V-belt and Electric Motor & Starter
Accessories
- Automatic lifting arrangements of cross rail
|
| Technical
Specifications |
| Model No |
|
NP 8 |
NP 10 |
NP 12 |
NP 14 |
NP 16 |
NP 18 |
NP 20 |
NP 22 |
NP 24 |
NP 26 |
NP 28 |
NP 30 |
| Size |
ft. mm |
8' 2438 |
10' 3048 |
12' 3657 |
14' 4267 |
16' 4876 |
18' 5486 |
20' 6096 |
22' 6705 |
24' 7315 |
26' 7925 |
28' 8535 |
30' 9144 |
| Length of Bed V'S |
ft. mm |
12' 3657 |
15' 4572 |
18' 5486 |
21' 6400 |
24' 7315 |
27' 8229 |
30' 9144 |
33' 10059 |
36' 10973 |
39' 11887 |
42' 12802 |
45' 13716 |
| Length of bed all over |
ft. mm |
13 3962 |
16 4877 |
19 5791 |
22 6705 |
25 7620 |
28 8534 |
31 9449 |
34 10364 |
37 11278 |
40 12192 |
43 13107 |
46 14021 |
| Stroke of table |
ft. mm |
8 2428 |
10 3048 |
12 3657 |
14 4267 |
16 4876 |
18 5486 |
20 6096 |
22 6705 |
24 7315 |
26 7925 |
28 8535 |
30 9122 |
| Length of table all over |
ft. mm |
9 2743 |
11 3553 |
13 3962 |
15 4572 |
17 5181 |
19 5791 |
21 6401 |
23 7010 |
25 7620 |
27 8230 |
29 8840 |
31 9449 |
| Thickness of Table |
inch mm |
7-1/2 190 |
7-1/2 190 |
7-1/2 190 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
9 225 |
| Planning Width |
ft. mm |
4 1219 |
4-1/2 1371 |
5 1524 |
5-1/2 1676 |
6-1/4 1905 |
6-1/4 1905 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
6-1/2 1981 |
| Height under cross rail |
ft. mm |
40 1219 |
4-1/2 1371 |
4-1/2 1371 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
5 1524 |
Other Features
| Technical
Specifications |
| Cutting Speed P.M |
ft. mm |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
40 12000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
30 9000 |
| Return Speed P.M |
ft. mm |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
55 16500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
45 13500 |
| Method of driving planer |
Belt driven |
| Method of driving table |
Rack & Pinion |
|
 |

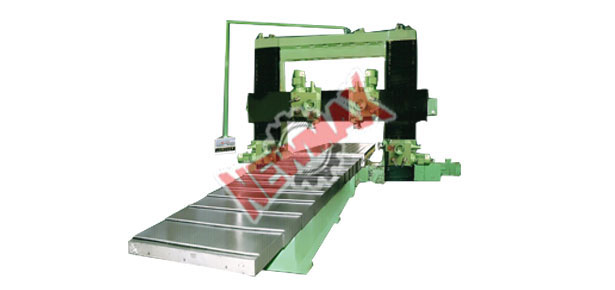

Plano Milling Machine
Our range of Plano Milling Machine is extensively
used in various industries for precise shaping of metals and other solid
materials. Our Plano Milling Machines are used for carrying out various
processes, such as routing, slot cutting, turning and welding in
metallurgical industries. These machines come with side attachments and our
range is offered in various configurations to our clients as per their
application requirements.
| Technical
Specifications |
| Model No. |
NPM-120 |
NPM-150 |
NPM-180 |
NPM-210 |
NPM-250 |
NPM-300 |
| Length of Stroke |
1800 to 15000 as per
Order/requirement |
| Width between Columns |
1200 |
1500 |
1800 |
2100 |
2500 |
3000 |
| Height under Cross Rail |
1200 |
1500 |
1500 |
1500 |
1500 |
1500 |
| Face of Cross Rail |
450 |
450 |
550 |
600 |
650 |
700 |
| Face of Columns |
325 |
325 |
450 |
500 |
500 |
500 |
| Width of Table |
875 |
1050 |
1200 |
1400 |
1500 |
1800 |
| No. of Table Feeds |
Stepless Infinitely Variable Speeds
with AC Variable Frequency Drive |
| Table Feed for Milling per Minute |
40 to 200 |
| Table Repaid feed per minute |
600 |
Standard Accessories
- One Milling Head on Cross Saddle
- Table Feed Drive Gear Box
- Cross Feed Drive Gear Box
- Lifting Drive Motor
- Electrical Control Panel
|
 |
Optional Accessories
- Extra Milling Head on Cross Saddle
- Extra Milling Head on Side Column
- Lifting Drive Gear Box for Side Milling Head
|
|
 |
