Power Hacksaw / Bandsaw Machines

We are engaged in offering a comprehensive range of Power Hacksaw / Bandsaw Machines. These machines are fabricated with high grade raw material. These machines are appreciated for their smooth & swift functioning ability, high efficiency, fine cutting and long lasting trouble free service, durability, reasonable rates. We also offer customization these machines as per the clients requirements.

Hacksaw Machines:

We offer superior quality Hacksaw Machines to our clients. These machines are precision engineered so as to meet the modern demands of several industries. Due to their smooth & swift functioning ability they are able to operate in a spontaneous way which aids the worker in consistently carrying his work with ultimate efficiency. Some of the specifications of this hacksaw machine are following:

Bed: The bed is available as a single piece casting. It has wide rigid casting for the collection of coolant, swarf and also houses the V-belt device.

Saw Frame: The rigid saw frame ensures a square & parallel cut & the cut takes place on the backward pull stroke. To prevent the wear of the blade, it is hydraulically lifted out of contact with work place on the forward stroke up.

The Drive: The drive is attached through V-Pulleys with provision to adjust the complete tension of the V-Belts. The shafts are fitted with ball bearings and taper and ball bearings to eliminate friction.

Speed: Specific speeds has been provided for different kind of metals in order to make it suitable. High speed for metals like mild steel, brass, copper etc. and low speed for cast iron.

Feed Saw: Two levers are provided to hydraulically control the Feed Saw at the dash-pot. One controls the rate of feed and the other enables the bow slide to be raised or lowered and after the completion of the cut, the motor gets automatically switched off.

Vice: The vice is rigid construction. It has two jaws, one jaw remains fixed and the other is adjusted according to the size of the material to be cut.

Coolant: A coolant tank is enclosed within the base of machines with constant speed to supply continuous cooling to the saw blade.

Electricals: A Push button starter is fitted with an adjustable trip mechanism that helps in stopping the machine soon when the blade is clear from the work at extra cost.




Hacksaw Machines
Ask for Price


Technical Specifications
Model M-175 M-200 M-250 M-300 M-350 M-400 M-500 M-600
Cap. Of Round Bar 175 200 250 300 350 400 500 600
Cap of Square Bar 125 150 200 250 275 325 350 425
Stroke 135 135 140 140 140 135 150 150
Stroke per min. (approx) 100-120 100-120 85-100 85-100 85-100 70-85 70-85 70-85
Blade size 12”-14” 14”-16” 16”-18” 18”-20” 20”-22” 22”-24” 24”-32” 30”-36”
Electric Motor 1H.P. 1H.P. 2H.P. 2H.P. 2H.P. 3H.P. 5H.P. 5H.P.
RPM of Motor 1440 1440 1440 1440 1440 1440 960 960
Length 1000 1000 1150 1250 1300 1500 1650 1750
Width 600 600 625 650 650 675 700 725
Height 800 800 1000 1000 1100 1200 1300 1400
Weight (approx) 325Kg. 335Kg. 450Kg. 550Kg. 650Kg. 750Kg. 1100Kg. 1200Kg.
Weight with Packing 400Kg. 450Kg. 550Kg. 650Kg. 775Kg. 900Kg. 1300Kg. 1400Kg.
V-Belts Required 4Pcs. 4Pcs. 4Pcs. 4Pcs. 4Pcs. 5Pcs. 6Pcs. 6Pcs.

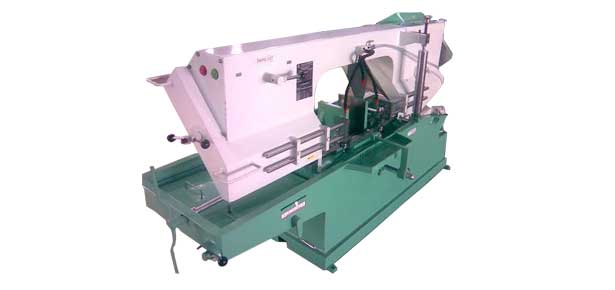

Horizontal Swing Type Bandsaw

We offer Horizontal Swing Type Bandsaw to our clients that is known for its superior performance. Supreme efficiency and long term durability are blended in this bandsaw machine. Our bandsaw machines are highly appreciable because of their durability and unparalleled service. Further, this bandsaw features:




Horizontal Swing Type Bandsaw
Ask for Price


Specifications 200mm 250mm 300mm 400mm
Cutting Cap Round 200mm Round 250mm Round 300mm Round 400mm
Square 170mm Square 220mm Square 270mm Square 370mm
Saw Blade 3000 x 27 x 0.9 3760 x 27 x 0.9 3760 x 27 x 0.9 4570 x 34 x 1.1
Blade Tension Mechanical Mechanical Mechanical Mechanical
Motors
Saw Blade motor 1.H.P. 960 rpm 1.H.P. 960 rpm 1.5H.P. 960 rpm 2.H.P. 960 rpm
Hydraulic Motor 1.H.P. 1440 rpm 1.H.P. 1440 rpm 1.H.P. 1440 rpm 1.H.P. 1440 rpm
Dimensions (L x W x H) 1600 x 370 x 1200 1800 x 500 x 1400 1800 x 500 x 1500 2000 x 600 x 1800

Standard Equipment
  • Complete Hydraulic System
  • Complete Coolant System
  • Step Pulley with V-Belt
  • Carbide & Roller Blade Guide

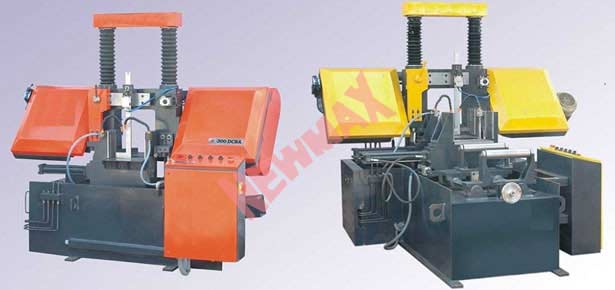

Double Column Bandsaw Machine

Offered by us is a wide range of Double Column Bandsaw Machine to the clients. These horizontal bandsaw machine are engineered in compliance with the international quality standards. Vertical Bandsaw Machine are basically metal cutting machines used in heavy industries.


Double Column Bandsaw Machine
Ask for Price


Technical Specifications
Model 210 300 525 650 800 1000 1250 1500
Cutting Cap. In mm Round Square 210 × 210 300 × 300 525 × 525 650 × 650 800 × 800 1000 × 1000 1250 × 1250 1500 × 1500
Blade Size (in mm) 3505 × 27 4100 × 34 5800 × 41 8000 × 67 8800 × 67 12300 × 67 or 80 13100 × 67 or 80 16100 × 80
Saw Motor (in mm) 3 5 10 15 20 20 25 25 or 30
Hyd. Motors 1 HP 1.5 HP 2 HP 2 HP 2 HP 2 HP 3 HP 3 HP
Coolant Motors 0.16 0.16 0.25 0.25 0.25 0.25 0.25 0.25
Chip Conveyor Motor HP 0.25 0.25 0.25 0.25 0.25 0.33 0.33 0.33
Over Dimensions For DBCSA Model
Length 1900 2600 3200 4100 4100 6200 6700 7500
Width 950 1200 1250 1800 1850 2700 3000 3000
Height 1450 1650 1700 2400 2400 3500 4000 4000
Cutting Speed (m/min) 20 to 100 mtr/min in steps std. Supply suitable for cutting all types metals ranging of hardness BHN 70 to 350
Power Supply 440 V + 10% 50 Hz. 3 Phase, AC Supply Control Circuit with 220 V Standard Supply
ACCURACY & OUT PHASE 100mm 0 ± 0.1mm


Benefits of Machine :
  • Vibration less operation for better accuracy
  • Replacement of component / part is easy
  • Precision work can be done
  • Accurate technical feature
  • User's friendly machine
  • Maintenance cost is very less
  • Machine life is very high

Optional Features :
  • Bundle cutting attachment
  • Conveyor table for mass production
  • Provisional for conversion of semiautomatic to Automatic machine features
