Press Brake

Press Brake machines are of great importance in the core industries with their highly versatile functions like bending the metal sheets and plates. These machines are specially designed with interlocked construction that ensures minimum deflection even under full load conditions. Incorporated with latest technology, these press brake machines take complete care of the perfect alignment making the bending precise and clear.

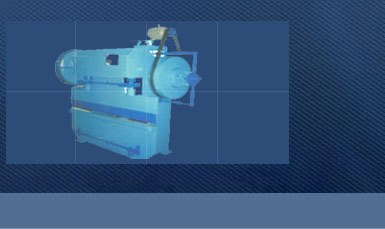

Mechanical Press Brake

Mechanical Press Brake has got with it, excellent accuracy and high speed for bending metal sheets and plates. Powered by a spinning flywheel, these types of press brake machines are wisely engineered with interlocked construction. Specially designed for maximum rigidity and minimum deflection, the mechanical press brake ensures perfect alignment of the sheet or plate.



Mechanical Press Brake
Ask for Price


Technical Specifications
Models Tons Bending Capacity in Mild Steel
( L x T)
Clearance Between Housings Strokes per Minute Strokes of Ram
(MM)
Ram Adjustment (M.M) Shut Height Ram Stroke Depth of Throat (MM) Main Motor HP/KW Ram Adjustment Motor HP/KW Overall Dimension
L W H
A B C
(Approximate)
RPB-1 20 20 1525X1.6 1000 25 50 50 200 250 5/3.7 Manually
RPB-2 25 25 2000X1.6 1300 25 50 50 200 250 5/3.7 Manually 2300 1150 2075
RPB-3 40 40 2000X2.5 1300 25 50 50 200 250 7.5/5.6 1/0.75 2300 1150 2075
RPB-4 60 60 2000X3.25 1300 25 60 50 200 250 7.5/5.6 1.5/1.1 2300 1150 2075
RPB-5 80 80 2500X4 1900 25 75 50 275 300 10/ 7.6 2.0/1.5 2900 1500 2620
RPB-6 100 100 2500X4.5 1900 25 75 50 275 300 15/11.2 2.0/1.5 2900 1500 2620
RPB-7 120 120 2500X6 1900 25 75 50 275 300 20/15 2.0/1.5 2900 1600 2620
RPB-8 160 160 3125X6 2050 25 75 50 275 300 30/22.4 2.0/1.5 3400 1900 2660


Features:
  • Powered by a spinning flywheel
  • Rugged structure
  • Easy operation
  • Maximum rigidity
  • Minimum deflections
  • High speed
  • Maximum transmission of torque and power
  • Perfect alignment
  • Easy control of the ram speed
  • Adjustable clutch
  • Low maintenance
  • Accuracy

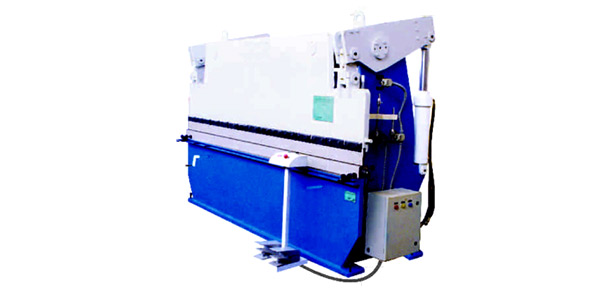

Hydraulic Press Brake

Hydraulic Press Brake combines the two synchronized hydraulic cylinders that are operating on the C-frames for perfect bending of metal sheets. There is integrated a servo-motor for driving the belt drive, exerting tonnage on the ram. In order to ensure minimum deflection even under full load conditions, we have specially designed these hydraulic press brake machines with stress relieved and rigidly welded steel frames.

Hydraulic Press Brake
Ask for Price


Technical Specifications
Model Tonnage Table Length Bending Capacity Table width Clear Pass Ram Stroke Open Height Throat Depth Approach Pressing Return Speed Power Packing Dimension
in MT in mm in mm in mm in mm in mm in mm in mm in mm E HP ( LxWxH)
PBR 215 20 1500 1.6x1500 2x1250 125 1050 100 250 100 35-9-35 3 1700X1050X1900
PBR 320 30 2000 2x2000 3x1250 125 1550 100 250 200 30-7-40 3 2200X1150X1900
PBR 420 40 2000 2.5x2000 3x1500 180 1550 100 250 200 40-6-45 5 2200X1150X1800
PBR 425 40 2500 2x2500 3x1500 180 2050 100 250 200 40-6-45 5 2700X1150X1900
PBR 430 40 3000 1.6x3000 3x1500 180 2550 100 250 200 40-6-45 5 3200X150X2000
PBR 515 50 1500 4x1500 5x1250 180 1050 100 250 200 35-6-40 5 1700X1150X1900
PBR 520 50 2000 3x2000 4x1500 180 1550 100 250 200 35-6-40 5 2200X1150X1900
PBR 525 50 2500 2.5x2500 3x2000 180 2050 100 250 200 35-6-40 5 2700X1150X1900
PBR 530 50 3000 2x3000 2.5x2500 180 2550 100 250 200 35-6-40 5 3200X1150X2000
PBR 540 50 4000 1.6x4000 2x3000 180 3100 100 250 200 35-6-40 5 4200X1250X2300
PBR 625 65 2500 3x2500 4x2000 180 2050 150 330 200 35-5-40 5 270pX1200X2000
PBR 630 65 3000 2.5x3000 3x2500 180 2550 150 330 200 35-5-40 5 3200X1200X2000
PBR 640 65 4000 2x4000 2.5x3000 180 3100 150 330 200 35-5-40 5 4200X1250X2400
PBR 820 80 2000 5x2000 6x1500 180 5100 150 330 200 40-6-45 7.5 2200X1550X2100
PBR 825 80 2500 4x2500 5x2000 180 2050 150 330 200 40-6-45 7.5 2750X1550X2300
PBR 830 80 3000 3x3000 4x2500 180 2550 150 330 200 40-6-45 7.5 3250X1550X2300
PBR 840 80 4000 2.5x4000 3x3000 180 3100 150 330 200 40-6-45 7.5 4250X1650X2500
PBR 850 80 5000 2x5000 2.5x4000 180 4100 150 330 200 40-6-45 7.5 5300X1650X2700
PBR 860 80 6000 1.6x6000 2x5000 180 5100 150 330 200 40-6-45 7.5 6300X1750X2800
PBR 1025 100 2500 5x2500 6x2000 180 2050 150 330 200 43-6-48 10 2700X1550X2300
PBR 1030 100 3000 4x3000 5x2500 180 2550 150 330 200 43-6-48 10 3250X1550X2300
PBR 1040 100 4000 3x4000 4x3000 180 3100 150 330 200 43-6-48 10 4250X1650X2500
PBR 1050 100 5000 2.5x5000 3x4000 180 4100 150 330 200 43-6-48 10 5300X1700X2800
PBR 1060 100 6000 2x6000 2.5x5000 180 5100 150 330 200 43-6-48 10 6300X1750X2900
PBR 1225 125 2500 6x2500 8x2000 230 2050 150 350 300 40-6-50- 15 2750X1650X2700
PBR 1230 125 3000 5x3000 6x2500 230 2550 150 350 300 40-6-50 15 .3250X1650X2500
PBR 1240 125 4000 4x3500 5x3000 230 3100 150 350 300 40-6-50 15 4250X1650X2600
PBR 1250 125 5000 3x5000 4x4000 230 4100 150 350 300 40-6-50 15 5300X1750X2900
PBR 1260 125 6000 2.5x6000 3x5000 230 5100 150 350 300 40-6-50 15 6300X1800X3000
PBR 1625 160 2500 8x2500 10x2000 230 2050 150 350 300 35-6-45 15 2750X1800X2500
PBR 1630 160 3000 6x3000 8x2500 230 2550 150 350 300 35-6-45 15 3250X1800X2600
PBR 1640 160 4000 5x4000 6x3000 230 3100 150 350 300 35-6-45 15 4300X1800X2700
PBR 1650 160 5000 4x5000 5x4000 230 4100 150 350 300 35-6-45 15 5300X1850X3000
PBR 1660 160 6000 3x6000 4x5000 230 5100 150 350 300 35-6-45 15 6300X1900X3200
PBR 2025 200 2500 10x2500 12x2000 230 2050 200 400 300 35-6-48 20 2850X1900X2600
PBR 2030 200 3000 8x3000 10x2500 230 2550 200 400 300 35-6-48 20 3350X2050X2750
PBR 2040 200 4000 6x4000 8x3000 230 3100 200 400 300 35-6-48 20 4350X2050X2800
PBR 2050 200 5000 5x5000 6x4000 230 4100 200 400 300 35-6-48 20 5350X2100X3100
PBR 2060 200 6000 4x6000 5x5000 230 5100 200 400 300 35-6-48 20 6350X2200X3500
PBR 2530 250 3000 10x3000 12x2500 300 2550 200 400 300 30-5-40 20 3350X2100X2800
PBR 2540 250 4000 8x4000 10x3000 300 3100 200 400 300 30-5-40 20 4350X2000X2900
PBR 2550 250 5000 6x5000 5x4000 300 4100 200 400 300 30-5-40 20 5350X2150X3200
PBR 2560 250 6000 5x6000 6x5000 300 5100 200 400 300 30-5-40 20 6350X2250X3600
PBR 3030 300 3000 12x3000 15x2500 300 2550 200 400 300 30-5-40 25 3350X2150X2900
PBR 3040 300 4000 10x3500 12x3000 300 3100 200 400 300 30-5-40 25 4350X2150X2900
PBR 3050 300 5000 7x5000 9x4000 300 4100 200 400 300 30-5-40 25 5350X2200X3400
PBR 3060 300 6000 6x6000 7x5000 300 5100 200 400 300 30-5-40 25 6350X2300X3800
PBR 4030 400 3000 16x3000 20x2500 300 2550 250 500 350 25-5-30 30 3350X2200X3000
PBR 4040 400 4000 12x4000 16x3000 300 3100 250 500 350 25-5-30 30 4350X2200X3000
PBR 4050 400 5000 10x5000 12x4000 300 4100 250 500 350 25-5-30 30 5350X2250X3600
PBR 4060 400 6000 8x6000 10x5000 300 5100 250 500 350 25-5-30 30 6350X2350X4000
PBR 5030 500 3000 20x3000 25x2500 300 2550 250 500 350 25-5-30 40 3350X2200X3200
PBR 5040 500 4000 15x4000 20x3000 300 3100 250 500 350 25-5-30 40 4500X2200X330
PBR 5050 500 5000 14x5000 15x4000 300 4100 250 500 350 25-5-30 40 5350X2400X3900
PBR 5060 500 6000 11x6000 14x5000 300 5100 250 500 350 25-5-30 40 6350X2500X4250
PBR 6030 600 3000 25x3000 30x2500 300 2550 250 500 350 25-5-30 50 3350X2200X3300
PBR 6040 600 4000 18x4000 25x3000 300 3100 250 500 350 25-5-30 50 4500X2200X3500
PBR 6050 600 5000 15x5000 18x4000 300 4100 250 500 350 25-5-30 50 5350X2300X3700
PBR 6060 600 6000 12x6000 15x5000 300 5100 250 500 350 25-5-30 50 6350X2600X4350


Features
  • Accurate bending
  • Adjustable bending force
  • Full Control of positioning & speeds of the ram
  • Automatic calculation of bending force and required bending angle
  • Ensures complete protection from concentrated load on tooling
