Grinding Machines is designed to remove the unwanted material and to give finishing and final look to both metallic and non-metallic workpiece. We manufacture these machines with a bed and a fixture to guide and hold the work piece. In addition to this, there is a power driven grinding wheel spinning at the required speed for precise grinding. The speed of the machine depends on the wheel’s size and manufacturer’s rating.
Surface Grinding Machine is a widely used machine in the process of finishing metal and non metal workpieces. We have incorporated a rotating sharp wheel that makes the machine capable of producing a smooth flat surface. Suitable for both metallic and non-metallic materials, these grinder machines achieve a desired productive result. Most common working materials include cast iron and steel. Other materials are aluminum, stainless steel, brass and some plastics.
| Technical
Specifications |
| Grinding Width |
150/ 200/ 250/ 300/ 400/ 500 |
| Grinding Length |
450/ 600/ 800/ 1000/ 1500/ 2000 |
| Grinding Wheel Dia |
250/ 300 |
| Main Head Motor |
2hp/ 3hp/ 5hp/ 7.5hp |
| Power Pack Motor |
2hp/ 3hp/ 5hp |
Features:
- Low maintenance
- Durability
- Energy efficiency
- Spontaneity
- Accuracy
- Minimum deflection
|
 |
- Easy operation
- Resistance to corrosion
- Suitable for both metallic and non-metallic materials
- Tolerance power
- Produces a smooth flat surface
|
|
|

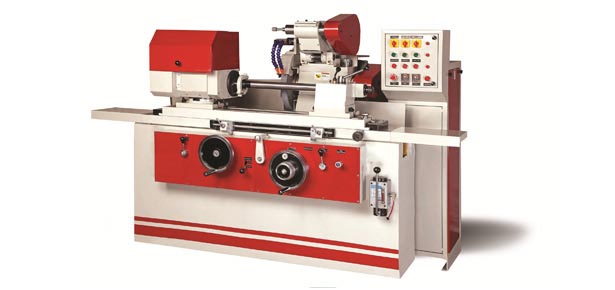

Cylindrical Grinding Machine
In addition our products are duly seasoned, rigid and strong enough to prevent any sort of distortion & wear. Cylindrical grinding is a process used to finish grind the outside or inside diameter of a cylindrical part.
| Technical
Specifica1i0ns |
| Center Height |
150 |
200/250 |
| Max. Gr. Length |
300/500/800 |
1000/1250/1500/1700 |
| Gr. Wheel Dia |
350/400 |
400/500 |
| Rapid Approach |
50 |
50 |
| No.of wkhd.speeds |
4 |
8 |
Features:
- Heavy beds for a rigid base
- Sufficient sideway length to support the table
- High precision
- Work pieces can be hardened or hard coated before grinding
|
|
- Accurately finish hardened shafts
- Can work on variety of shapes
- Highly dynamic driving system
|
|
|
