Plate Rolling Machines

Plate Rolling Machines have proven their credibility in all the vertical of industries. Widely used for heavy duty jobs, these rolling machines have excellent capacity of bending the metal sheets into tubes of different diameters. Operated manually, the rolling machine have adjustable rolls, thus reducing the running time and improving the productivity. These plate rolling machines are suitable for both aluminum and steel fabrication work with high level of repetitive accuracy.

Mechanical Plate Rolling Machines

Mechanical Plate Rolling Machine is one of its kinds of machine that is capable of carrying cold process in the industries. Suitable for handling heavy jobs, these plate rolling machines are used to bend the sheets of high thickness into different diameter cylindrical tubes. Based on the working principle of screw- nut, this type of plate rolling machine is operated manually.



Mechanical Plate Rolling
Ask for Price


Technical Specifications
Capacity (Length x Thk) Dia of Top Roll mm Dia of Bottom Roll mm Main Motor HP
1250 x 03 100 90 2
1250 x 06 125 105 3
1250 x 10 150 125 5
1250 x 12 175 140 7.5
1250 x 16 190 150 7.5
1250 x 20 200 160 10
1250 x 25 240 200 15
1500 x 03 115 100 3
1500 x 06 140 115 5
1500 x 10 160 135 5
1500 x 12 180 150 7.5
1500 x 16 200 160 10
1500 x 20 215 170 12.5
1500 x 25 250 215 20
2000 x 03 130 105 3
2000 x 06 160 135 5
2000 x 10 185 150 7.5
2000 x 12 205 165 10
2000 x 16 220 175 12.5
2000 x 20 . 230 190 15
2000 x 25 275 230 25
2000 x 30 310 260 30
2500 x 03 150 125 5
2500 x 06 175 150 7.5
2500 x 10 200 170 10
2500 x 12 230 180 15
2500 x 16 240 200 20
2500 x 20 260 215 20
2500 x 25 300 260 30
2500 x 30 330 280 40
3000 x 03 175 150 7.5
3000 x 06 200 170 10
3000 x 10 240 200 15
3000 x 12 260 220 20
3000 x 16 275 225 20
3000 x 20 290 220 25
3000 x 25 330 280 40
3000 x 30 360 330 40
2000 x 36 330 280 30
2500 x 36 345 300 50
3000 x 36 385 340 50
2000 x 42. 360 315 40
2500 x 42 400 350 50
3000 x 42 430 380 50
2000 x 50 380 345 50
2500 x 50 425 375 60


Features:
  • Adjustable rolls
  • Main motor is provided for adjusting the direction of roll
  • Wear resistant forged steel rolls
  • Rolls designed with horizontal grooves for correct feeding and additional gripping
  • Steel fabricated housing
  • Indicators at both ends for correct top roll pressure

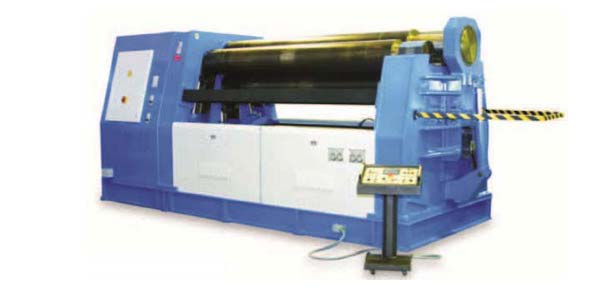

Hydraulic Plate Rolling Machines

Hydraulic Plate Rolling machine is considered as the best type of heavy duty plate rolling machine. These types of rolling machines find their wide applications in major core industries for cone making, steel and aluminum fabrication and construction.


Hydraulic Plate Rolling
Ask for Price


Technical Specifications
Model Pre Bending Capacity Bending Capacity Bending Length Top Roll Diameter Side Roll Diameter Min in Pre Bending Min in Bending Length Width Height Weight Motor Power
  mm mm mm mm mm mm mm mm mm mm kg Kw
EM PBM 815 6 8 1500 200 180 300 600 3100 1600 1350 4600 5.5
EM PBM 1015 8 10 1500 210 190 315 630 3200 1600 1400 4800 7.5
EM PBM 1315 10 13 1500 225 205 338 675 3350 1700 1450 5000 7.5
EM PBM 820 6 8 2000 210 190 315 630 3700 1600 1400 5900 7.5
EM PBM 1020 8 10 2000 225 205 338 675 3850 1700 1450 6100 7.5
EM PBM 1320 10 13 2000 240 220 360 750 3850 1700 1450 7000 11
EM PBM 1520 12 15 2000 270 250 405 810 3900 1750 1450 7700 15
EM PBM 1820 15 18 2000 290 270 435 870 4200 2100 1600 9100 15
EM PBM 2220 18 22 2000 320 290 480 960 4200 2100 1750 9500 18.5
EM PBM 2520 20 25 2000 350 300 525 1050 4200 2250, 1850 12400 18.5
EM PBM 3020 25 30 2000 380 310 570 1140 4200 225G 1850 14900 22
EM PBM 3520 30 35 2000 420 330 630 1260 4600 2250 2100 17000 30
EM PBM 4020 35 40 2000 440 350 660 1320 5000 2300 2530 22000 37
EM PBM 5020 40 50 2000 460 370 690 1380 5150 2300 2530 26000 45
EM PBM 825 6 8 2500 225 205 338 675 4350 1700 1450 7200 7.5
EM PBM 1025 8 10 2500 240 220 360 720 4350 1700 1450 8100 11
EM PBM 1325 10 13 2500 270 250 405 810 4400 1750 1450 8800 15
EM PBM 1525 12 15 2500 290 270 435 870 4700 2100 1600 10300 15
EM PBM 1825 15 18 2500 320 290 480 960 4700 2100 1750 11100 18.5
EM PBM 2225 18 22 2500 350 300 525 1050 4700 2250 1850 14200 18.5
EM PBM 2525 20 25 2500 380 310 570 1140 4700 2250 1580 16700 22
EM PBM 3025 25 30 2500 420 330 630 1260 5100 2250 2100 19500 30
EM PBM 3525 30 35 2500 440 350 660 1320 5500 2300 2530 23000 37
EM PBM 4025 35 40 2500 460 370 690 1380 5650 2300 2530 26000 45
EM PBM 5025 40 50 2500 490 390 980 1960 5750 2350 2600 31000 37+11
EM PBM 6025 50 60 2500 525 500 1000 2050 6300 2200 2100 36000 45+11
EM PBM 7025 60 70 2500 575 550 1150 2200 6400 2300 2200 42000 56+15
EM PBM 8025 70 80 2500 650 625 1300 2350 6500 2450 2300 49000 75+18.5
EM PBM 630 4 6 3000 225 205 338 675 4850 1700 1450 8300 7.5
EM PBM 830 6 8 3000 240 220 360 720 4850 1700 1450 9200 11
EM PBM 1030 8 10 3000 270 250 405 810 4900 1750 1450 9900 15
EM PBM 1330 10 13 3000 290 270 435 870 5200 2100 1600 11500 15
EM PBM 1530 12 15 3000 320 290 480 960 5200 2100 1750 12700 18.5
EM PBM 1830 15 18 3000 350 300 525 1050 5200 2250 1850 16000 18.5
EM PBM 2230 18 22 3000 380 310 570 1140 5200 2250 1850 18500 22
EM PBM 2530 20 25 3000 420 330 630 1260 5600 2250 2100 22000 30
EM PBM 3030 25 30 3000 440 350 660 1320 6050 2300 2530 25500 37
EM PBM 3530 30 35 3000 460 370 690 1380 6150 2300 2530 29000 45
EM PBM 4030 35 40 3000 490 390 980 1960 6250 ' 2350 2600 32500 37+11
EM PBM 5030 40 50 3000 520 410 1040 2080 6400 2350 2650 37000 37+18.5
EM PBM 6030 50 60 3000 535 510 1050 2100 7000 2250 2250 42000 45+11
EM PBM 7030 60 70 3000 600 575 1250 2300 7100 2450 2400 47000 56+15
EM PBM 8030 70 80 3000 675 650 1400 2450 7200 2550 2500 53000 75+18.5
EM PBM 840 6 8 4000 290 270 435 870 6200 2100 1600 11000 15
EM PBM 1040 8 10 4000 320 290 480 960 6200 2100 1750 13000 15
EM PBM 1340 10 13 4000 350 300 525 1050 6200 2250 1850 15000 18.5
EM PBM 1540 12 15 4000 380 310 570 1140 6200 2250 1850 17500 22
EM PBM 1840 15 18 4000 420 330 630 1260 6600 2250 2100 21500 30
EM PBM 2240 18 22 4000 440 350 660 1320 7050 2300 2530 25500 37
EM PBM 2540 20 25 4000 460 370 690 1380 7150 2300 2530 31000 45


Features:
  • Fixed bottom rolls that are driven by gears and warm reduction gear box
  • Top roll can be adjusted up and down by adjustable screws
  • Mild steel housing mounted on heavy base frames
  • Forged steel rolls
  • Accurate rolling
  • Highs speed productivity
