Shaping Machine

We are premium manufacturers and suppliers of Shaping Machine and have carved ourselves a niche in this industry. These Shaping Machines help to create flat metal surfaces and it can also cut curves, angles and many other shapes. These gear shaping machines and metal shaping machines are offered at an optimal cost and have a long lasting life. Simple as well as effective, our range of Shaping Machines is ideal for metals such as steel, aluminum, ferrous and non-ferrous metals. Our products are backed by custom configurations and effective post sales services.

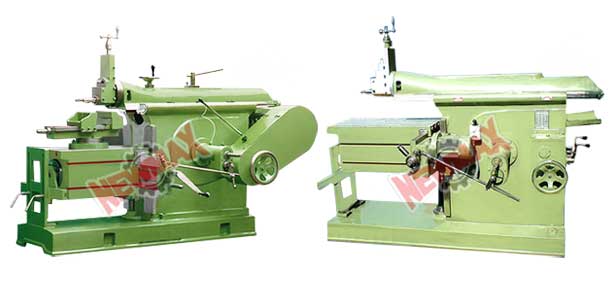

We supply high quality All Geared Shaping Machine which is known for its special features like high performance, condensed construction, sturdiness and long utility life. These are offered with a size ranging between 18" to 42". The base of our machine is well ribbed to provide stability which can also be fitted on the foundation bolts. Moreover, the column of Shaper Machine is of heavy box section and has substantial internal webs. It has a wide front and slides which are accurately scraped. They ensure enough rigidity and alignment when the full power of machine is utilized.

The ram of Shaper Machine has heavy cross sections to resist cutting stresses. The alignment of Shaper Machines is preserved by well proportion V type bearings. Adequate means of lubrication are provided and fleet wipers are fitted to protect the slides which make it one of the most demanded products in our entire range of products.

Features:

• The tool head of Shaping Machine is graduated and may be swiveled to any angle up to 90 degrees
• The Cross slide of Shaper Machine has long guides, with a deep frontal bearing ensuring adequate support for the table
• The vertical screw is fitted with a ball thrust bearing to obtain a light and easy movement. The table universal or Fix is provided with the slots on the top as well as on one side and has bolts on the other side. The Bull wheel is cut with helical teeth to prevent chatter and ensure a smooth even drive to the ram
• A reliable stroke adjusting mechanism is provided in it. The drive from the motor is by multiple V belts through a claw clutch for three different speeds
• Machines can be supplied when required with a pulley drive incorporating the clutch. The automatic self acting horizontal feed motion is arranged to give 3 optional feeds per stroke of the ram. The vice of Shaper machine is of the single screw type and has deep and wide inter- changeable jaws
• The swiveling base is accurately graduated. Standard accessories include one heavy duty vice having one operating handle with motor pulley
